This time we will bring you the ASUS P55 Series: P7P55 EVO
Intel P55 Chip產品將於2009年9月正式推出市場，各家主機版廠也早就完成主機板設計蓄勢待發，
可想而知 Intel P55 產品將會帶給中高階市場消費者另一個不同的選擇，這下主機板廠也要各出奇招讓消費者在購買時
能夠買到效能 買到便宜更可買到附加功能，這就要看各家主機板廠的RD PM的努力了。

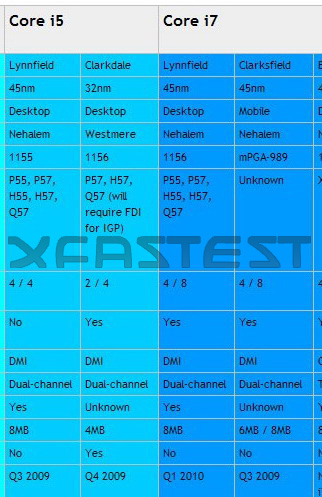

再看 華碩 ASUS P7P55 EVO 同時會再順道介紹Intel P55相關架構和CPU支援讓大家更了解這葫蘆賣甚麼藥
其他的就是先拿好板凳搶好位置~用力給他看下去
As the information we got, Intel P55 chipset will go to the market on Sep. 2009, most of the MB companies are ready to release the new MB too. For the mainstream market, P55 will bring this users a different choice than LGA 775 platform, so the additional functions/price will be the main point for the P55 MB, or the users no need to waive the LGA 775 Platform and pay a lot on P55. Today we will bring you the latest ASUS MB P7P55 EVO and teh Intell P55 details.

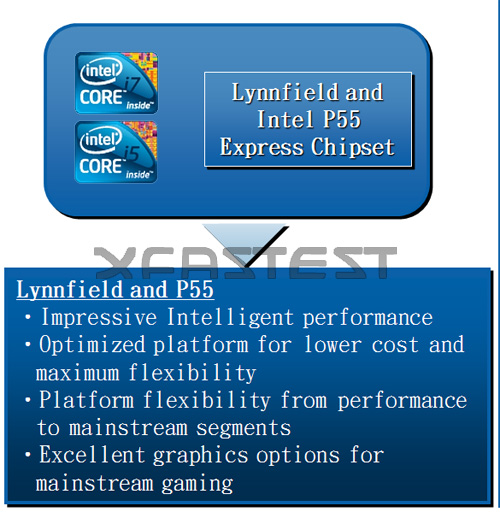

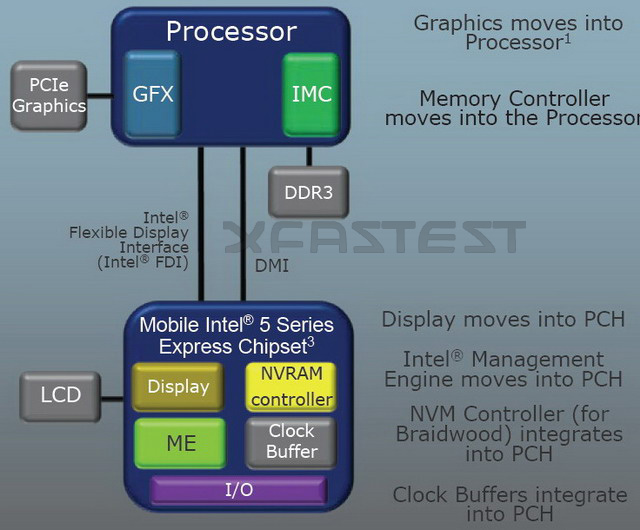

In the architecture of the P55, Lynnfield will control the data including PCI-E and DDR3 Memory, then pass this datas through DMI to the P55 Chip, this chip is called "PCH".
再來看看P7P55 EVO的電源設計

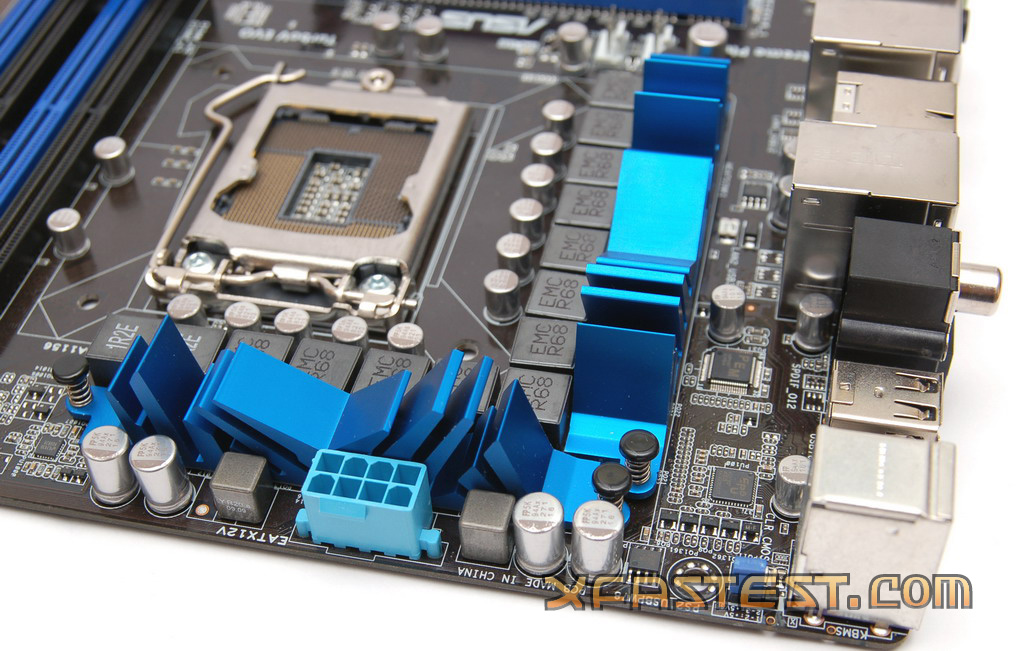

Next stop we have a close look on the Power design on P7P55 EVO...
此次Core i5再使用下是相當不耗電的，再配合P7P55 EVO 12+2項的供電設計
PWM部份基本上不會產生多少熱量但在散熱部分設計P7P55 EVO一點都不馬虎
一樣給他加上一個相當美觀的散熱片相當用心
Core i5 is not a power monster, with the P7P55 EVO 12+2 power design, it can lower the PWM heat problems, and also the heatsink is COOL too.

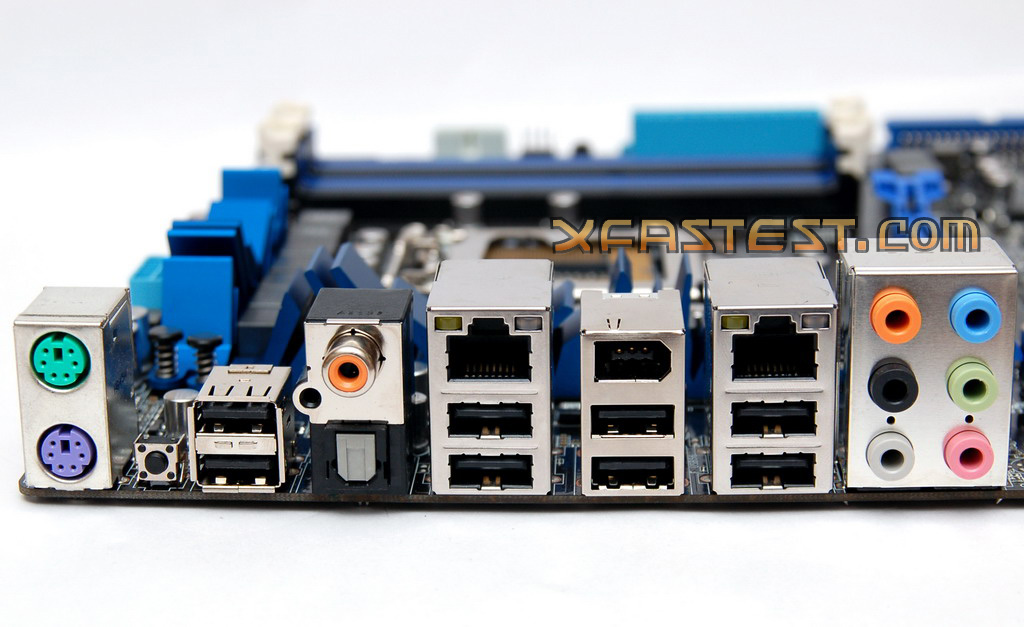

在背板接頭設計發現一個有趣的地方 ASUS P7P55 EVO將PS/2 回復到2個
此考量點和先前單PS/2 Keyboard&Mouse只能選一的設計概念有些不同
A interesting thing: now we have 2 PS/2 connector on the MB, I don't know the reason but obviously it is different to compare with the past MB.
但USB Port就一樣有8個 再配上2個 Lan Port 和 一個1394和音效相關孔為
可是少了eSATA Port，還在想說在P55會不會推出有帶電源eSATA Port 小小失望一下.
As you saw, 8x USB 2.0 Port with 2x LAN Port, but the eSATA is disappeared.

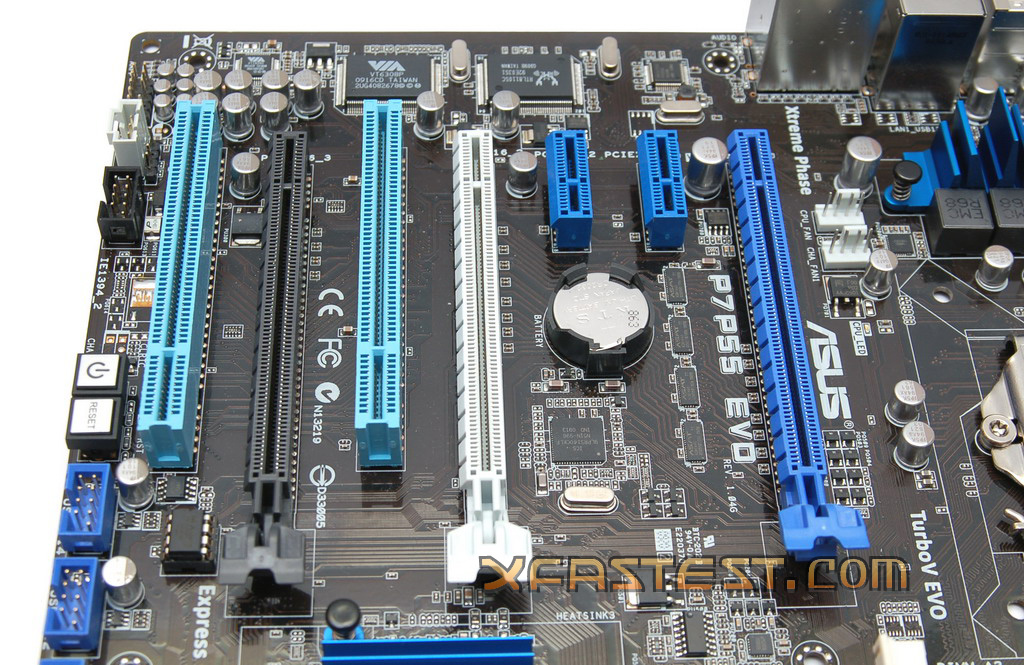

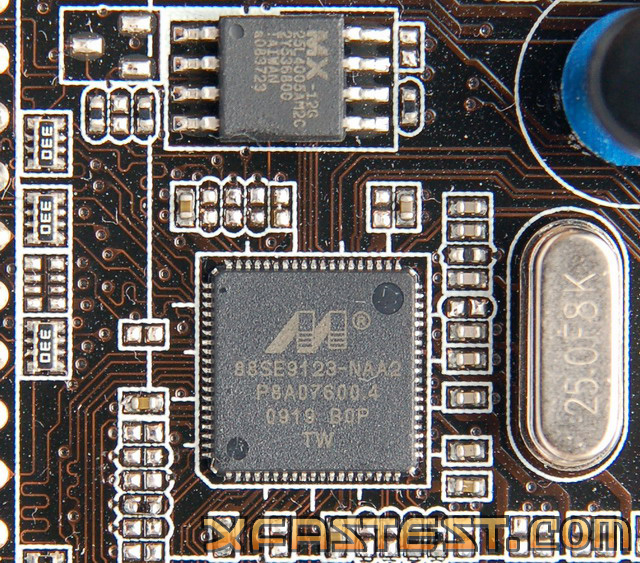

Marvell SATA 3 contorller 88SE9123 provide the SATA 3 fuction, and the lane is using PCI-E 1x.

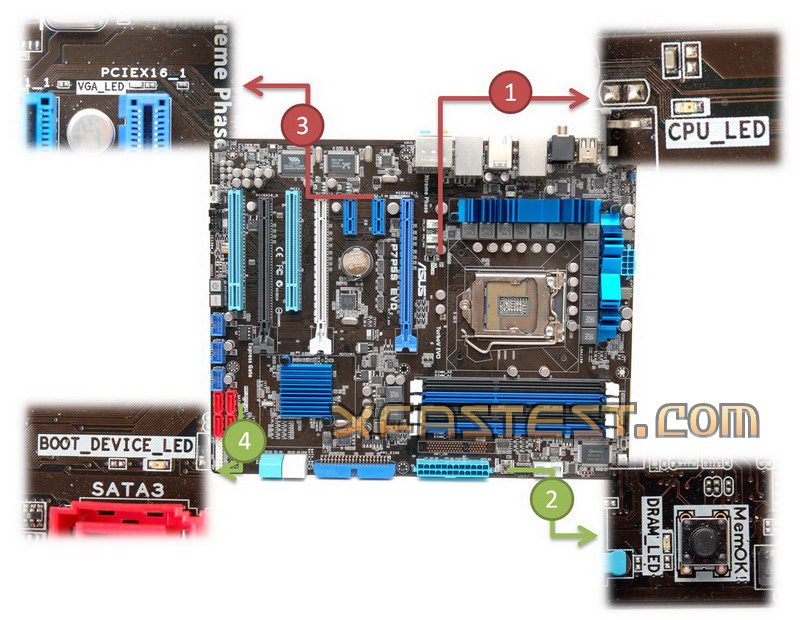

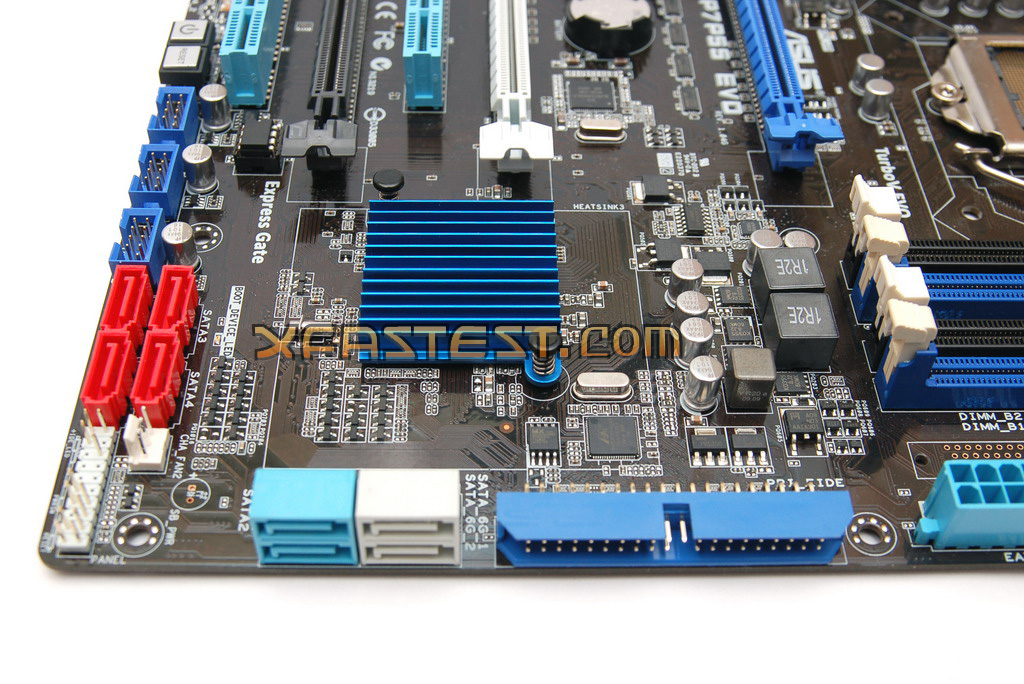

同時內建Power 和 Reset 開關 和 6個USB2.0 Port 和 1個FDD Port
on board switch design, 6x USB2.0 port and 1x FDD here.
再來看Memory部份P55 IMC採用的是雙通道設計目前官方數據是Speed up to 1333MHz
但這個數據下其實過於保守，可能現有DDR3 IC Major 還未有 1600MHz 推出
Memory part, P55 IMC use the dual-Channel design, the offical spec is up to 1333MHz, it is a very conservative, I got lots of D3-2133 modules now, but probably the main reason is 1600MHz not the major IC on the market.

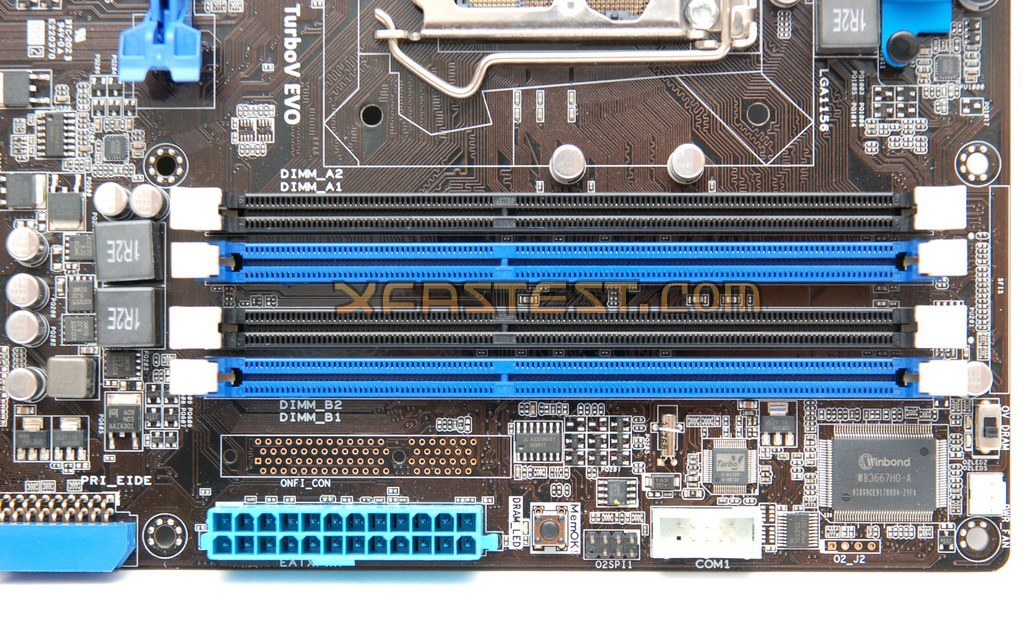

在P7P55 EVO 可看出Memory設計採2向電源供應並同時可支援4隻DIMM
2 Phase Power design on Memory DIMM, provide 4x DIMM capacity.
But as the X58 problem, if you only use 1 or 2 memory, please insert from blue dimm, or you can not power on the PC,
Intel does not provide any info on "why I can not use the first dimm to power on", just like the memory 1.65v problem,
but surely it will have a big problem after the products go to the market, that time the Intel will ask most module house to find the problems...
maybe we can discuss this later...haha...
在整張P7P55 EVO背面相當乾淨沒有上任何原件
Clean back design, nothing special.
相關控制IC
IC tour on P7P55 EVO

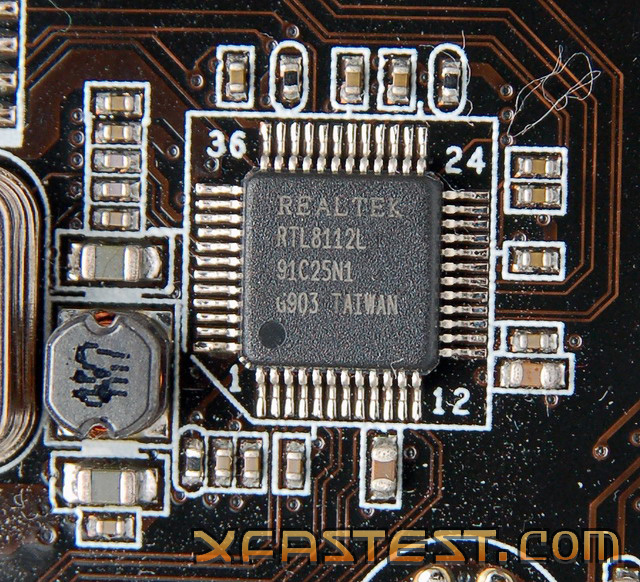

RTL8112L 為網卡控制晶片
Netwrok PHY: RTL 8112L

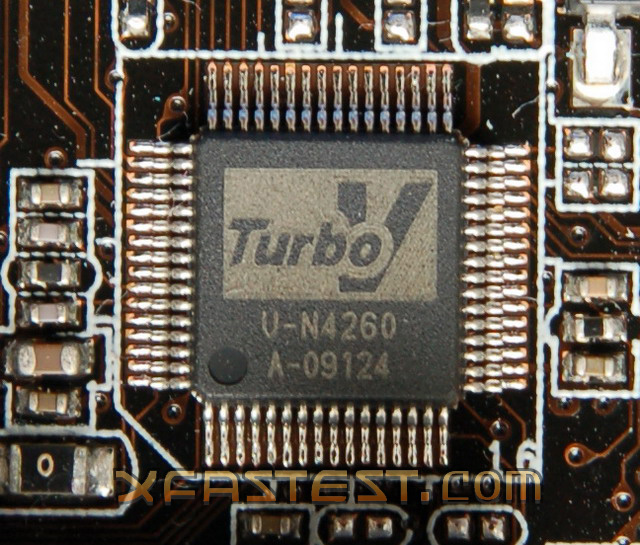

ASUS PWM控制晶片EPU 和 PEM
ASUS EPU/PEM chip.
這會不會跟 MemOK有關IC 目前查證中
Actually I do not know what is this IC for...will check with ASUS later...
音效和1394 IC
Audio Codec and 1394 IC.

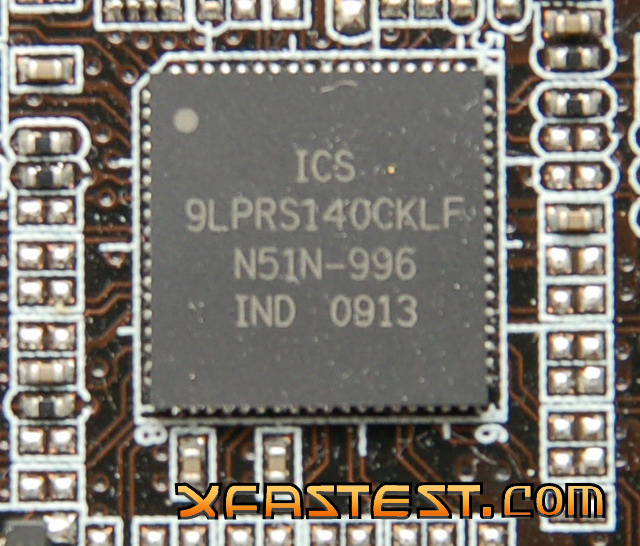

Clock gen IC

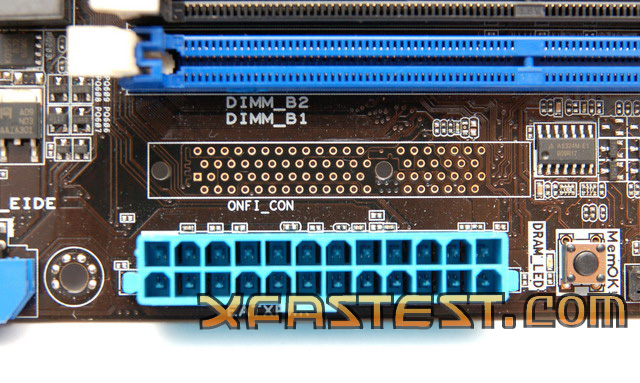

再來就是看一個最有趣的部分 但在P55不會推出 會在明年2010 Q1推出的P57上出現

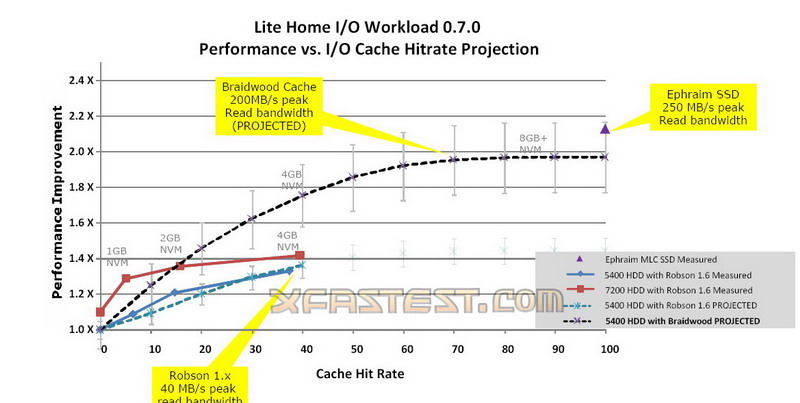

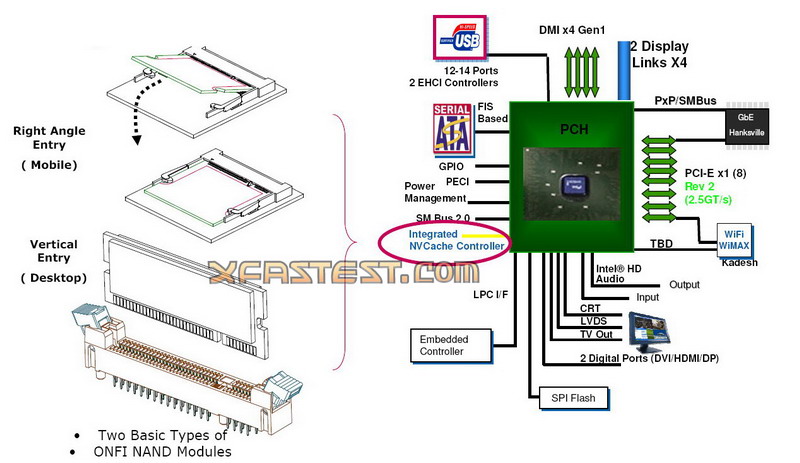

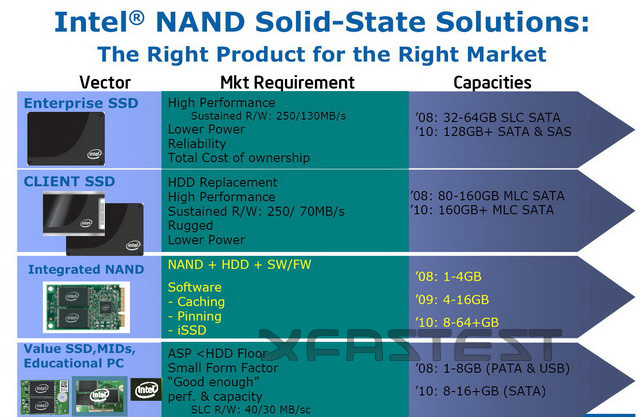

Another Interesting parts: "Braidwood"
It will not show up on P55 chipset, but surely will release on P57, Q1 2010.
Now you can only got a few LGA 1156 cooler on the market, the LGA 1156 is not compatible with LGA 775 or 1366, so you will need to pay for another cooler (you evil INTEL !!)

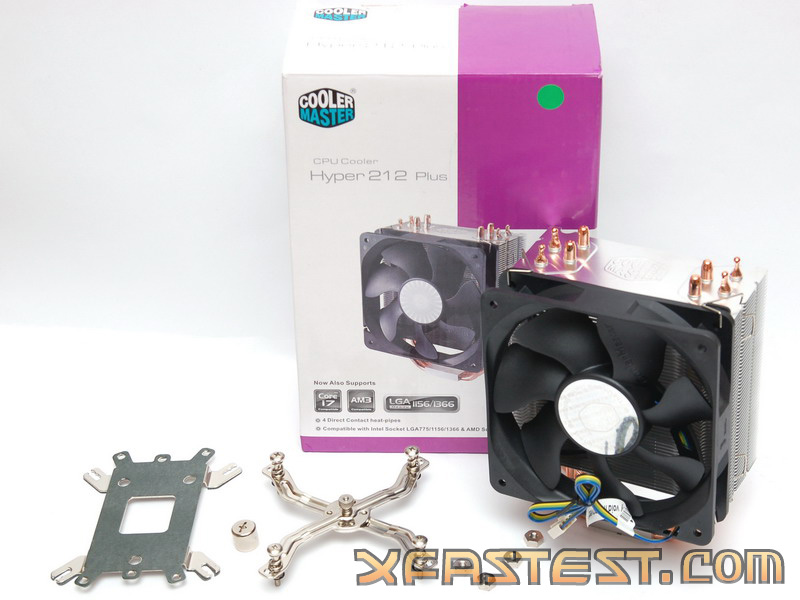

Coolermaster Hyper 212 Plus 有出 1156相容的散熱器扣具
Thanks for Coolermaster for this Hyper 212 Plus with LGA 1156 rig.
安裝方式就要特別注意幾個地方
Just bring you some installation pics...
紅色箭頭-->當要安裝背板 注意螺絲有個平面角度
綠色箭頭-->將螺絲往上拉 可以調整到對應孔位

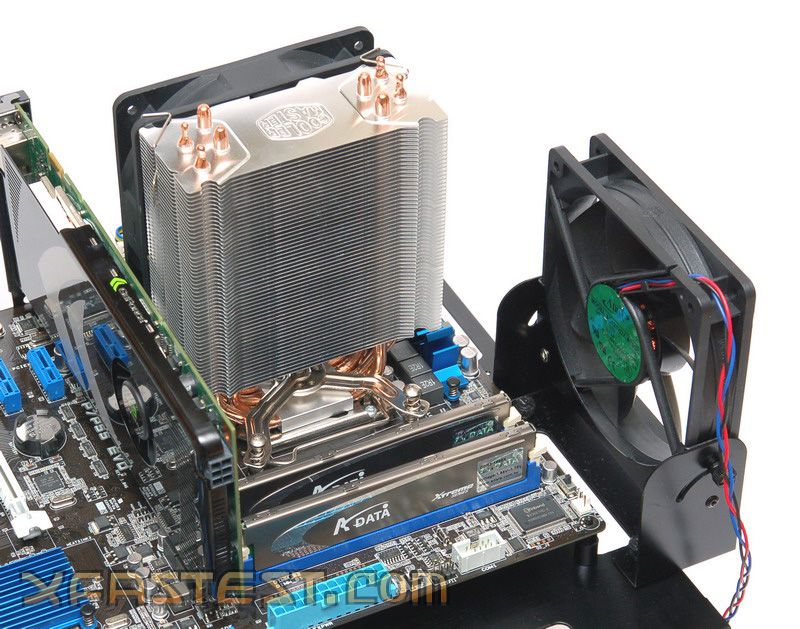

安裝完成圖

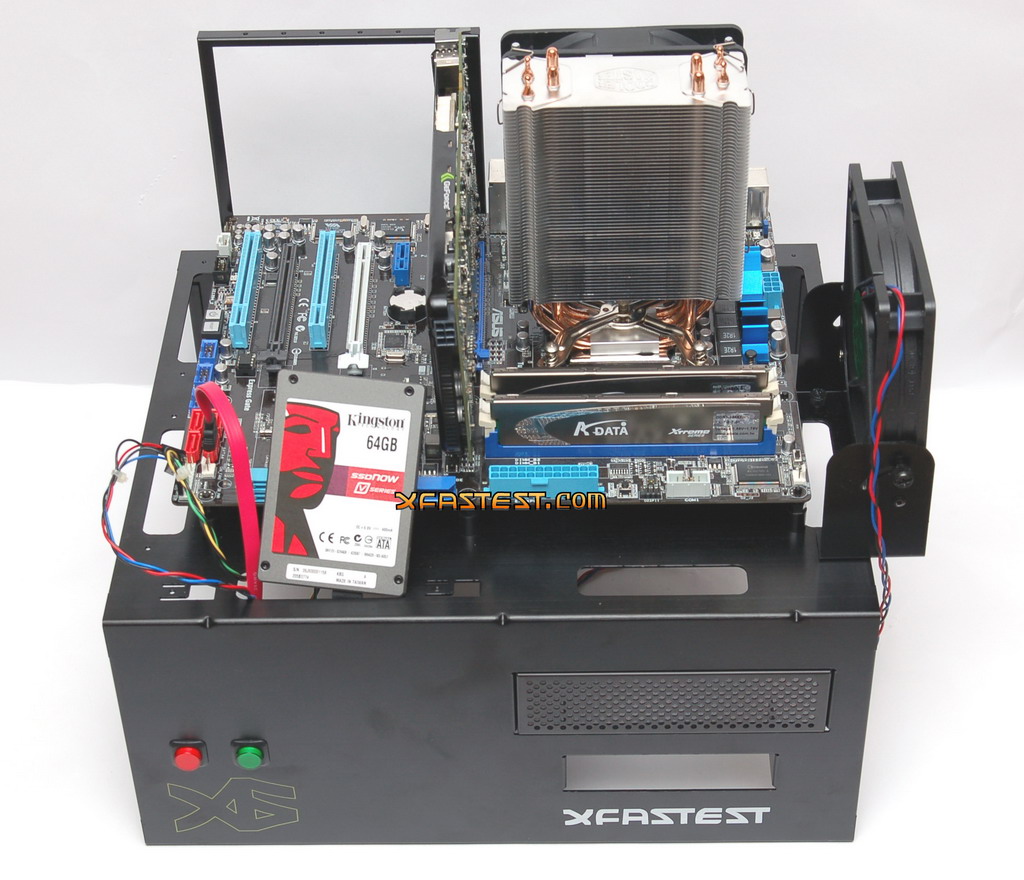

再來就是上機體驗Intel P55 ASUS P7P55 EVO 配上Lynnfield 處理器快感
設備如下:
CPU:Lynnfield 處理器 Core i5 2.66G
MB:ASUS P7P55 EVO
Memory:A-DATA 1886X 2GB x 2
SSD:Kingston V Series 64G
VGA:Nvidia 8800GT
Power:ENERMAX REVOLUTION 1050W
當然還要使用XFastest 專業裸測架2代 測試
