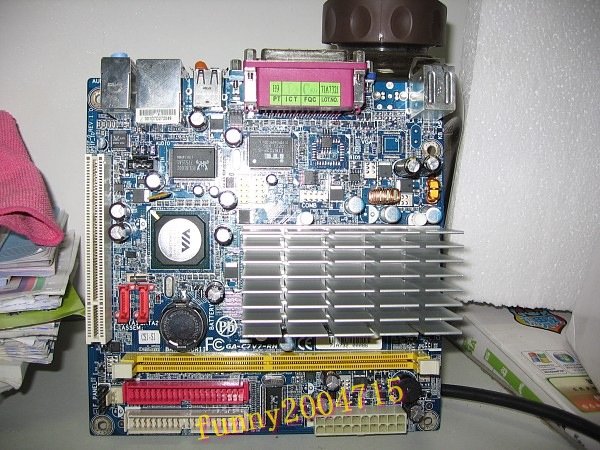

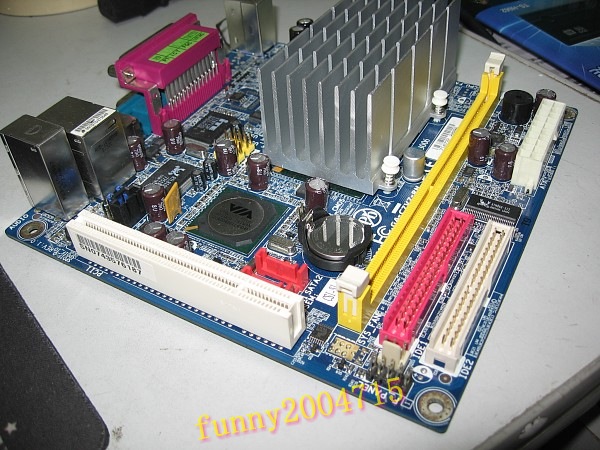

Model Name GA-C7V7-RH
Form Factor Mini-ITX form factor (4-layer)
17.0cm (6.7") x 17.0cm (6.7")
Processor VIA C7 1000 MHz Processor
533 / 400MHz FSB
Chipset VIA CN700 North Bridge
VIA 8237R Plus South Bridge
System Memory 1 DDR2 400/533 DIMM Socket
Up to 1GB Memory Size
Storage VIA 8237R Plus?/SPAN>
2 IDE connectors (IDE1, IDE2) with UDMA 33/ATA 66/ATA 100/ATA 133 support, allowing connection of 4 IDE devices
2 SATA connectors (SATA1/SATA2), allowing connection of 2 SATA devices
Expansion Slots 1 PCI
Onboard LAN RTL8100C (10/100 Mbit) LAN Controller
Onboard Audio Realtek ALC653 Codec
Supports 2 / 4 / 6 channel audio
Supports Line In; Line Out; MIC
SPDIF Out connection
CD in connection
Back Panel I/O 1 PS2 mouse port?/SPAN>
1 PS2 keyboard port
1 Serial port
1 VGA (DB15) port
1 TV Out (Optional)
1 S-Video port (Optional)
4 USB 2.0/1.1 ports?/SPAN>
1 RJ-45 port
3 audio jacks (Line In / Line Out / MIC In)
Onboard I/O Connectors 1 20-pin ATX power connector
2 IDE connectors
2 SATA connectors
1 CPU fan connector
1 system fan connector
1 front panel connector
1 front audio connector
1 CD In connector
2 USB 2.0/1.1 connectors for additional 4 USB 2.0/1.1 ports by cables
1 SPDIF In/Out connector
BIOS?/SPAN> Use of licensed Award BIOS
Operating System Microsoft Windows 2000/XP
Hardware Monitor CPU / System temperature detection
CPU / System fan speed detection
CPU / warning temperature
CPU / System fan failure warning
Supports CPU / System Smart Fan function
