标题: 华擎 M3A UCC这款板子值不值得买？ [打印本页]

作者: 不搞不舒服斯基 时间: 2010-9-9 12:39
标题: 华擎 M3A UCC这款板子值不值得买？

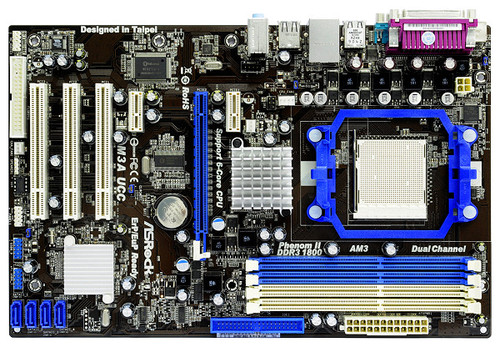

- D' I1 n. v, m华擎 M3A UCC主板

" v; I6 ~% X+ }, Q/ k8 R 无论如何，这款AMD 480X芯片组为独立芯片组且只能够支持AM2接口处理器。但是华擎却强大到可以使这款芯片组支持最新的AM3处理器同时还加入了UCC开核技术。UCC开核技术可以把4核处理器中被屏蔽的两核打开从而变成6核处理器，功能相当强大。
主板特征：
4 F! }7 d5 [, V) s' J

总览：
支持处理器 - Support for Socket AM3 processors: AMD Phenom™ II X4 / X3 / X2 (except 920 / 940) / Athlon II X4 / X3 / X2 / Sempron processors) e4 q& |7 F6 C# R  {
- Six-Core CPU Ready6 p. X+ R( z$ Z3 x
- Supports UCC feature (Unlock CPU Core). f- v* z+ n- v/ ?+ {: b+ T+ G7 ?: y! D
- Supports AMD’s Cool ‘n’ Quiet Technology
; ?$ y# _, C: `/ ~/ W- FSB 1000 MHz (2.0 GT/s)
6 E( J1 C3 x* ?/ A- Supports Untied Overclocking Technology+ z! I& L  g! U, g
- Supports Hyper-Transport Technology
芯片组 - Northbridge: AMD 480X CrossFire™ Chipset) g3 S+ K1 i; d& i& p
- Southbridge: AMD SB600
内存支持规格 - Dual Channel DDR3 memory technology) _6 L. i7 Z4 t- {
- 4 x DDR3 DIMM slots( x+ ~' Q' v4 g2 b
- Supports DDR3 1800(OC)/1600/1333/1066/800 non-ECC, un-buffered memory- {9 V3 N: Q+ [* p, z- e  B/ V$ {# B
- Max. capacity of system memory: 16GB*
1 L- |  s! R* l- t0 b*Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation.
BIOS - 4Mb AMI Legal BIOS7 H% H8 g. S( R1 b8 Z8 I& E
- Supports “Plug and Play”. w* B$ H" f# r3 r7 I4 I
- ACPI 1.1 Compliance Wake Up Events* I) x" H/ O( _/ s3 p
- Supports jumperfree  b( F( T2 V( w# q2 u. l* E
- SMBIOS 2.3.1 Support& M# n2 m+ K7 c
- CPU Voltage Multi-adjustment
音频、视频和网络接口
内置显卡 - n/a
音频 - 5.1 CH HD Audio (VIA® VT1705 Audio Codec)
网络 - PCIE x1 Gigabit LAN 10/100/1000 Mb/s. q+ N# h( ^5 v
- Realtek RTL8111E: N; S% q  x3 A+ |1 R5 ?
- Supports Wake-On-LAN
扩展插槽
插槽 - 1 x PCI Express x16 slot: {0 F" t+ U& J2 r0 m- O
- 2 x PCI Express x1 slots
9 J! d$ {& Z8 n. D/ O5 ^3 p4 j3 }" |- 3 x PCI slots
主板接口 - 4 x SATAII 3.0 Gb/s connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and “Hot Plug” functions/ |3 c" X9 ^, |, @, ]
- 1 x ATA133 IDE connector (supports 2 x IDE devices)" S! E* ~% ~; b, x+ X  D$ I) @& W
- 1 x Floppy connector
$ S4 q4 \% s9 ^5 U3 u4 ^- 1 x IR header
, h6 |0 n+ h4 I& E- CPU/Chassis/Power FAN connector( T# O5 w5 [: A; T: z
- 24 pin ATX power connector" N; L1 E1 C$ i9 x
- 4 pin 12V power connector" _% x1 |1 e/ _( R+ {
- CD in header
$ @6 }: \0 M) I: A- Front panel audio connector
) Z% @* {& n! m- 2 x USB 2.0 headers (support 4 USB 2.0 ports)
背板I/O接口 Asrock HD 6CH I/O# }" e2 _7 J: D  `
- 1 x PS/2 Mouse Port( s4 N+ {0 o$ i' |0 z
- 1 x PS/2 Keyboard Port
+ _6 G/ k# E* x! ^4 h. c- 1 x Serial Port: COM1  q+ L" ^) j6 p
- 1 x Parallel Port (ECP/EPP support)9 d' u" [5 }! c3 z+ I
- 6 x Ready-to-Use USB 2.0 Ports9 R3 W  V* C6 ^% O! Z1 B. d! W! F6 I' S
- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)8 b" R( l& {& @) A6 [9 N6 z+ g
- HD Audio Jack: Line in / Front Speaker / Microphone
其他特色
独有特色技术 - ASRock OC Tuner( i, N& _) [2 r7 t, N6 F
- Intelligent Energy Saver) \8 l8 b- G) e& E; `
- Instant Boot
- B) J9 v/ C; d7 ^( h9 a3 W- ASRock Instant Flash
. f/ G; f6 s7 j# Q4 p4 t8 ?- Y- ASRock OC DNA
2 _$ Q4 W* f# f: F. t$ s+ o: x- Hybrid Booster$ O4 q  [- ^. ^6 E4 s9 g2 P
- CPU Frequency Stepless Control
' ]6 B# X8 I3 I7 X- ASRock U-COP2 _) o* B! L8 f: b' I  b/ M
- Boot Failure Guard (B.F.G.)
CD内容 - Drivers, Utilities, AntiVirus Software (Trial Version), ASRock Software Suite (CyberLink DVD Suite – OEM and Trial; Creative Sound Blaster X-Fi MB – Trial)
附件 - Quick Installation Guide, Support CD, I/O Shield
, \8 I( K9 _9 y- U  f" Z- 2 x SATA Data Cables (optional)
硬件监控 - CPU Temperature Sensing
5 f$ D, c+ n% f! s. L4 s4 p6 m7 S- Chassis Temperature Sensing3 {$ ^' m: v- s) C5 q, i
- CPU/Chassis/Power Fan Tachometer
* Y2 L9 }  v' |' d$ i& S3 `- CPU Quiet Fan. M% v% o! X4 U2 @# r) {; b
- Voltage Monitoring: +12V, +5V, +3.3V, Vcore
主板规格 - ATX Form Factor: 12.0-in x 7.8-in, 30.5 cm x 19.8 cm
适应系统 - Microsoft® Windows® 7 / 7 64-bit / Vista™ / Vista™ 64-bit / XP / XP Media Center / XP 64-bit compliant
认证 - FCC, CE, WHQL6 O$ L/ z7 R% U& P, \
- ErP/EuP Ready (ErP/EuP ready power supply is required)

作者: 不搞不舒服斯基 时间: 2010-9-9 17:07
主板区的人呢？？

作者: taipinggou 时间: 2010-9-9 18:14
这**+荡的规格，这样罕见的芯片组，如此强悍的BIOS开发实力，LZ绝对值得买一块收藏

作者: ericcantone 时间: 2010-9-10 19:25
太太平平买主流的785或者880，以后bios更新会比较快

作者: 不搞不舒服斯基 时间: 2010-9-10 20:38

太太平平买主流的785或者880，以后bios更新会比较快
: [" `4 [! O8 X; [* a8 Zericcantone 发表于 2010-9-10 19:25

太太平了不属于DIY精神，DIY的精髓就是折腾

作者: 1234chgm 时间: 2010-9-10 20:53
350以下可以考虑玩玩，再多了就不值。

作者: smart2002 时间: 2010-9-10 21:13
330的价格还可以

作者: job 时间: 2010-9-10 21:18
南桥是sb600的，悲剧了吧

作者: hcgxp 时间: 2010-9-10 21:59
人如其名啊。樓主已經是第二次提出這種奇怪的要求了。
