标题: Intel多网卡主板/五网卡主板N270/软路由防火墙无风扇工控
本帖最后由 zhen179 于 2011-6-6 13:47 编辑

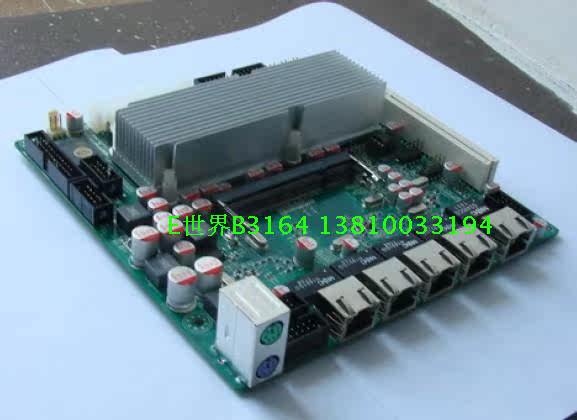

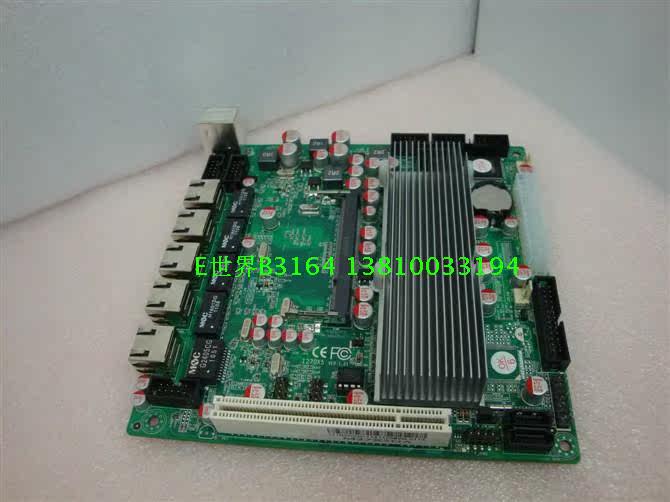

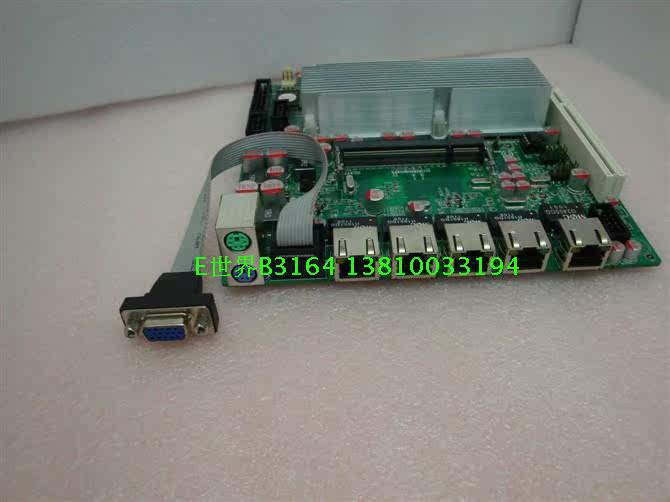

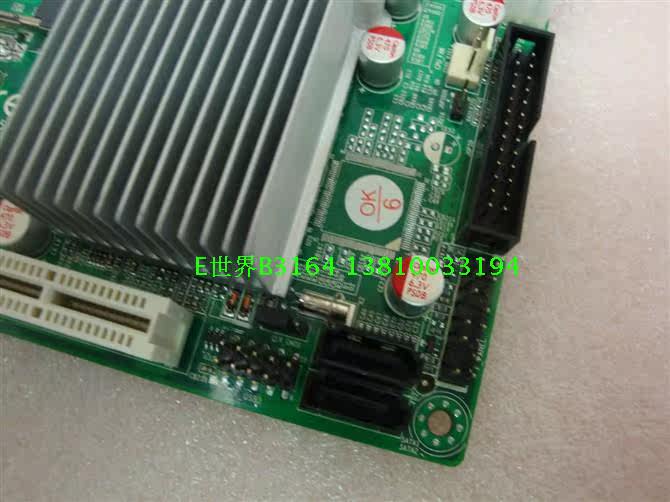

Intel多网卡主板/五网卡主板N270/软路由防火墙无风扇工控
http://item.taobao.com/item.htm?id=10442507165

北京客户直接来店拿货，北京中关村E世界B3164 13810033194
Specifications
CPU With onboard 1.6G Intel Atom N270 processor(with CPU fan)
Front Side Bus 533/400MHz
Chipset INTEL 945GSE+ICH7-M
Memory
1. 1 x SO DIMM DDR2 sockets , Max up to 2 GB memory;
2. Support for DDR2 533/400 MHz memory modules.
Graphics On board GMA950,supports DX9.0C
Audio
1.Integrdted Realtek ALC65X Audio Codec for 6-Channel Audio-out
2.Supports 6-Channel Audio-out
LAN 1. 1 pcs Realtek 8111C,10/100/1000M chip
2. 1 pcs Realtek 8101E,10/100 chip

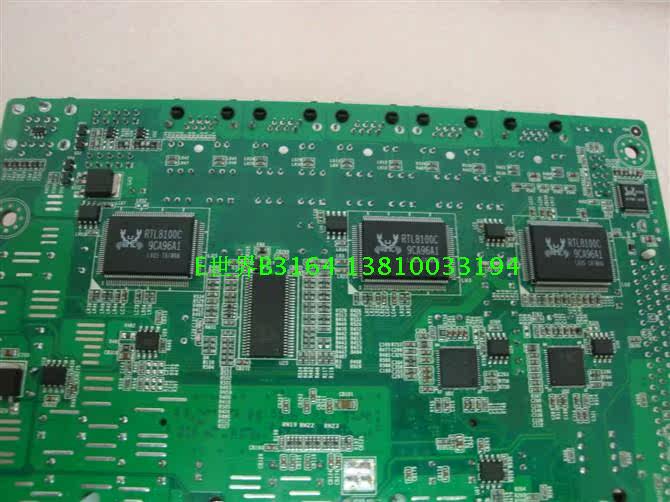

3. 3 pcs Realtek 8100C,10/100M chip
Storage Interface 1.2*SATAII 300MB/S connectors
Expansion Slots 1*PCI
USB 6*USB 2.0(Via the USB brackets connected to the internal USB headers
Internal
I/O Connectors
1. 1*24 PIN main power connector
2. 1*System fan header

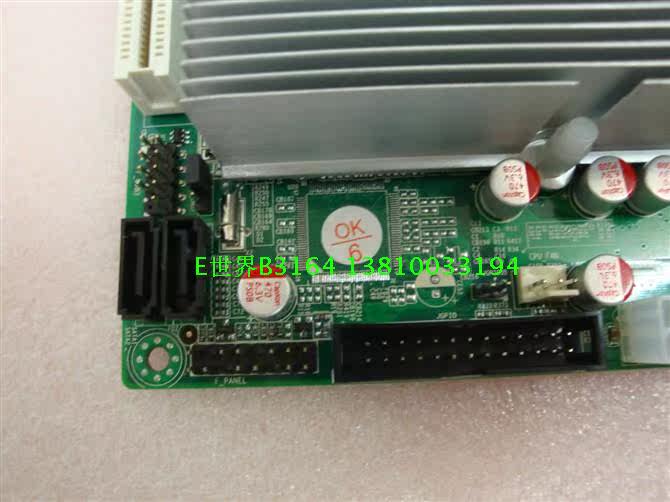

3. 2*SATA II 300MB/s connectors
4. 1*front panel header
5. 1*front panel Audio header
6. 1*F_FAN LED header
7. 3*USB 2.0 headers
8. 1*VGA-H header
9. 1*Clear CMOS Header
10. 1*JGPIO GPIO header
11. 1*LPT header
12. 2*COM ports
Back Panel
Connectors

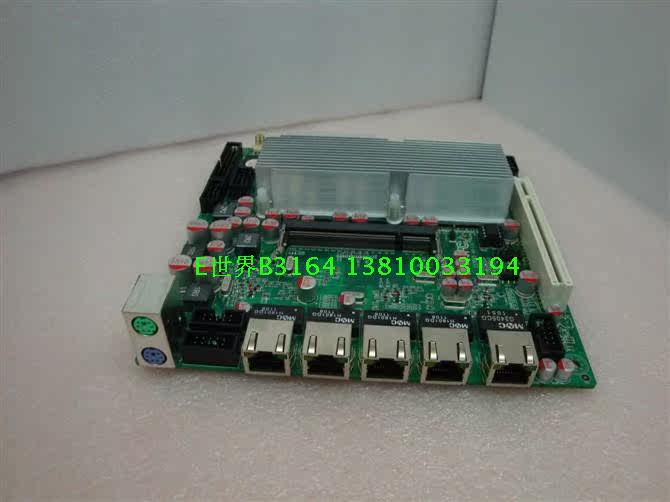

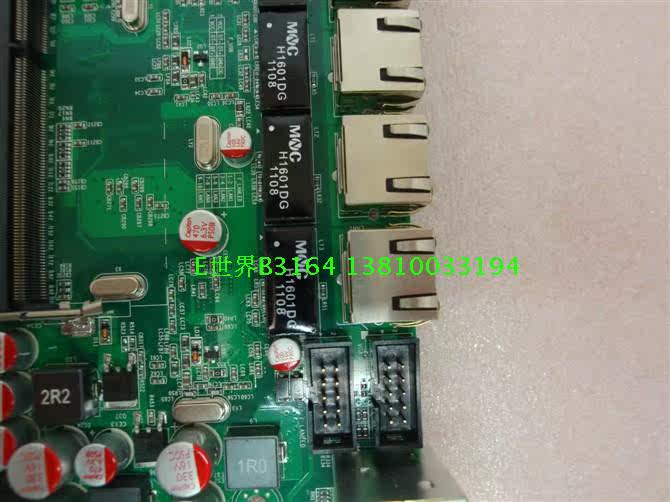

1. 5*RJ45 connectors
2. 1*PS2 keyboard and mouse ports
I/O Controller ITE8712F-S
BIOS AMI Authorized 8Mbit BIOS, support RPL/PXE non-disk system
Form Factor Mini ITX 170mmx170mm
Work Environment
Work Temperature 0~60°C
Work Humidity 10%~80% relative humidity, non-condensing
Apply Range Enterprise Level Firewall Boards
