现货保3年Intel D2700MUD/四核2.13G/itx主板VGA+DVI/LVDS GZ价670元

http://item.taobao.com/item.htm?id=13967975777

北京客户直接来店拿货，北京中关村E世界B3164 13810033194

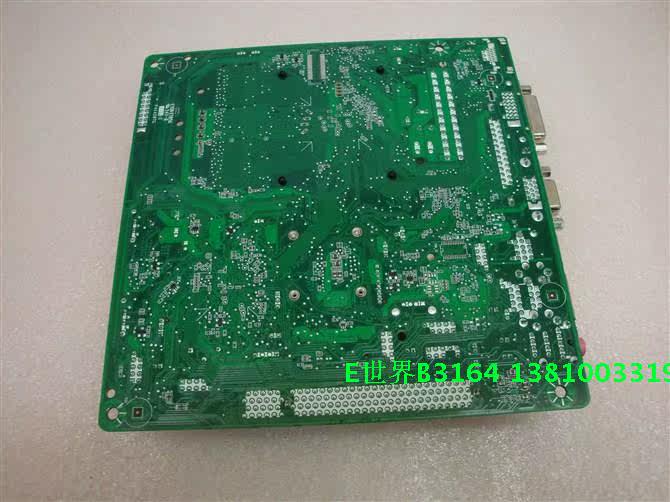

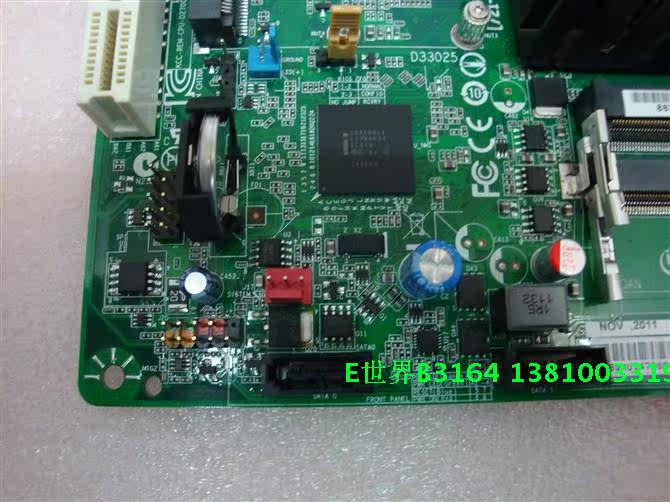

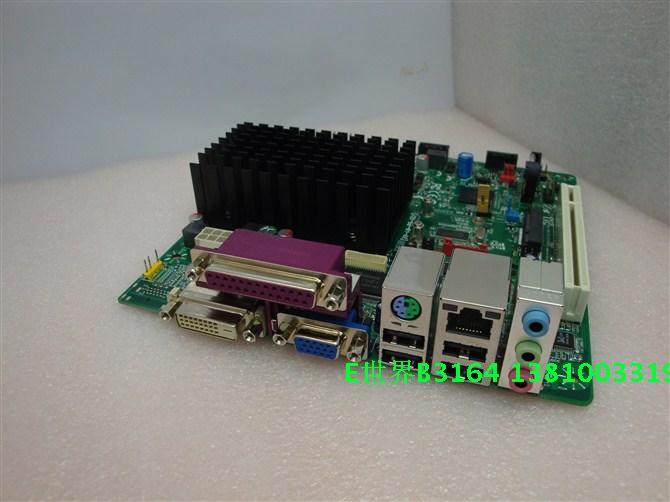

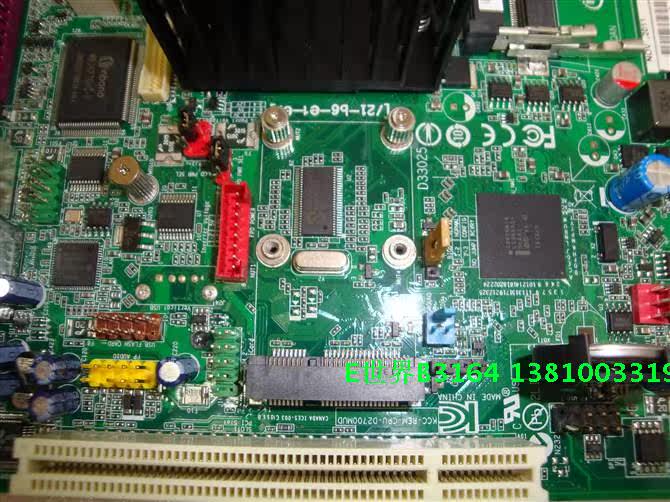

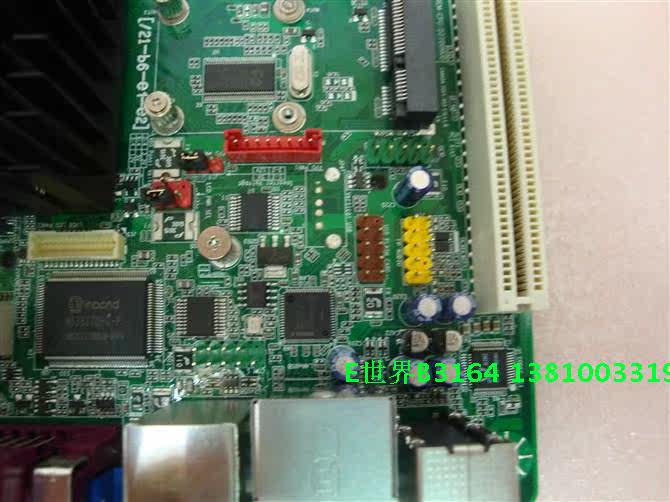

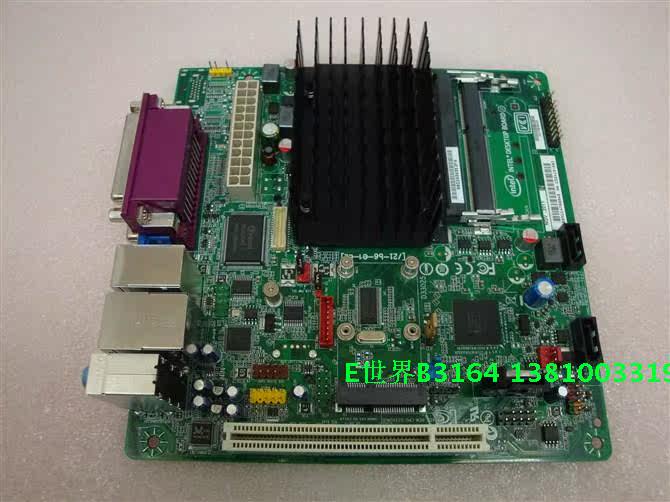

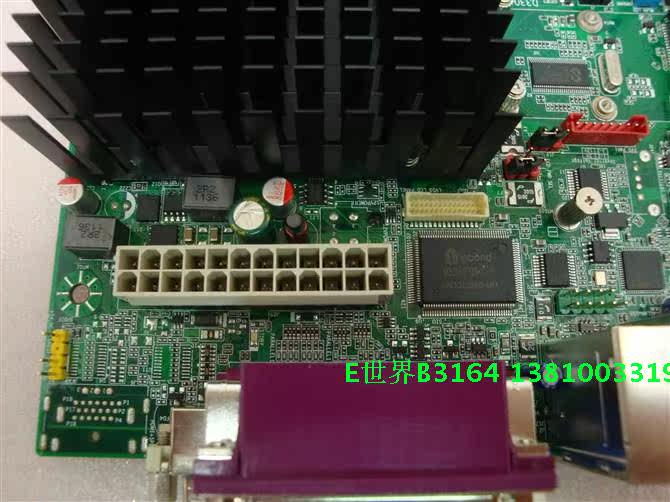

本主板为最新一代Atom D2700 2.13GHz双核四线程处理器的Intel D2700MUD原装主板，为Mini-ITX规格小板，由于处理器内集成了GMA3650高清图形核心，只需搭配NM10一颗芯片即可完成平台搭建。D2700MUD没有使用风扇散热，而是用大尺寸散热片满足处理器散热需求，NM10芯片组则完全无需辅助散热。扩展提供一条PCI插槽，两个SODIMM插槽，接口包括VGA、DVI-D、SATA×2、USB 2.0，D2700MUD还带有Mini PCI-E插槽，Intel千兆以太网卡。

Form factor	Mini-ITX / Micro-ATX compatible (170mm X 170mm)
AA number [url=](Altered Assembly)[/url]	BOX/BLKD2700MUD: G23419-XXX
BIOS ID string	MUCDT10N.86A
Processor	At product launch, this Intel? Desktop Board D2700MUD supports: [url=]Intel? Atom? processor D2700[/url] with passive heatsink

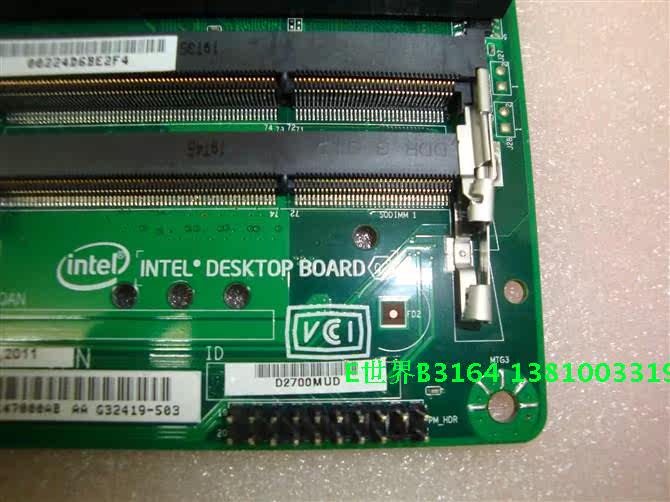

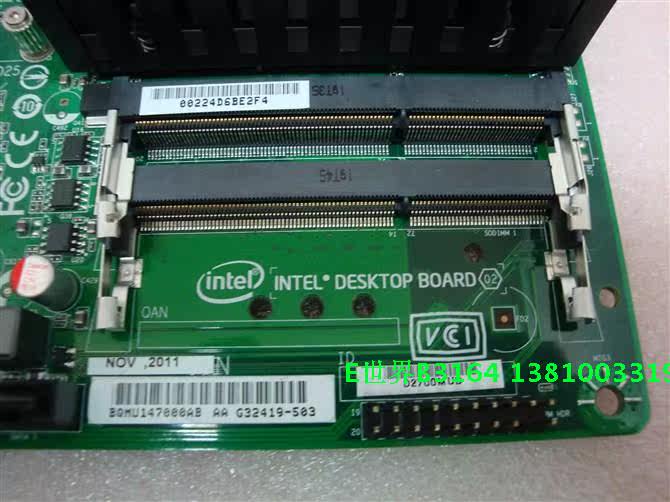

Memory	Two SO-DIMM slots for 1066/800 MHz [url=]DDR3[/url] single-channel memory Support for up to 4 GB of system memory
Chipset	[url=]Intel? NM10 Express Chipset[/url]

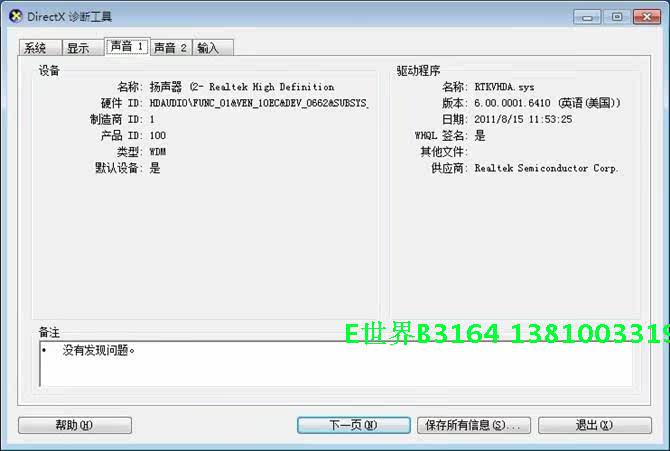

Audio	[url=]Intel? High Definition Audio (Intel? HD Audio)[/url] subsystem in the following configuration: Six (5.1) channel Intel? HD Audio Front panel mic/headphone header (2x5)
LAN support	Integrated Intel? 10/100/1000 network connection
Peripheral interfaces	Two [url=]USB 2.0[/url] ports (back panel) Three USB 2.0 ports (internal) Two [url=]Serial ATA[/url] 3.0 Gb/s ports PS/2 port (keyboard or mouse) Two Serial headers (internal) One Parallel port (back panel)
Expansion capabilities	One [url=]PCI Express[/url] Conventional Bus Connector One PCI Express Mini Card
Video	VGA & Digital DVI ports
Warranty	3-year warranty (BOX/BLK) Standard Warranty Replacement (SWR)
