标题: 全新原装Gigabyte/技嘉iGA-2AIEL5-RH/HDMI光纤17*17/4个com/LVDS
全新原装Gigabyte/技嘉iGA-2AIEL5-RH/HDMI光纤17*17/4个com/LVDS
http://item.taobao.com/item.htm?spm=1102383B.3-KYPP.h-28kTRL&id=14426275522&
GA-2AIEL5-RH，CPU为AMD Sempron 210U 1.5GHz，690+SB600芯片，集成X1270 ATI显卡，带HDMI，光纤接口，24位LVDS,4个com口，8个USB接口，

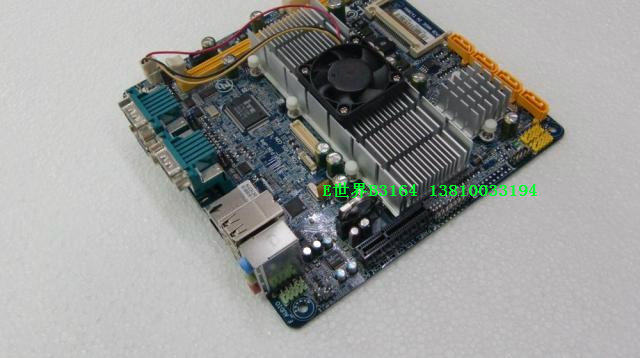

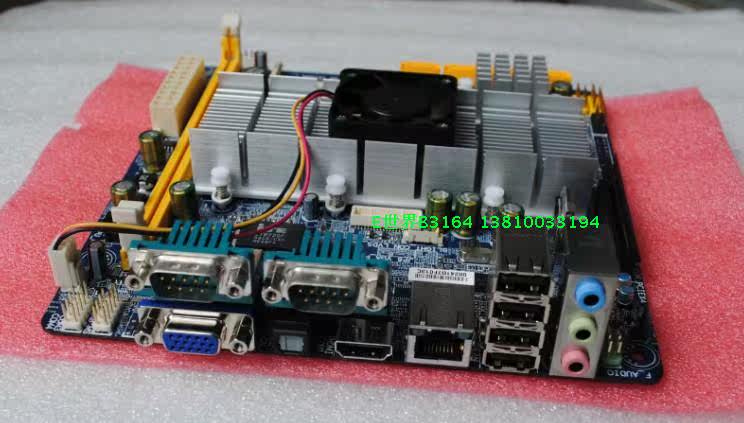

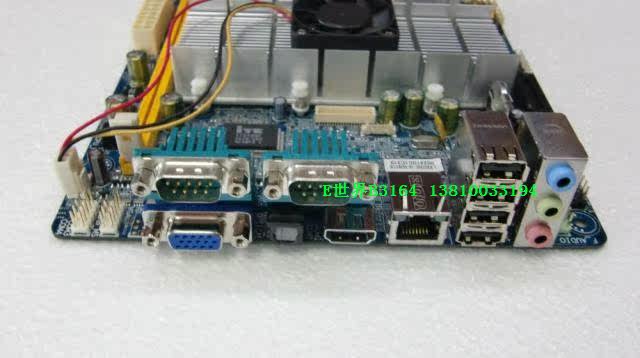

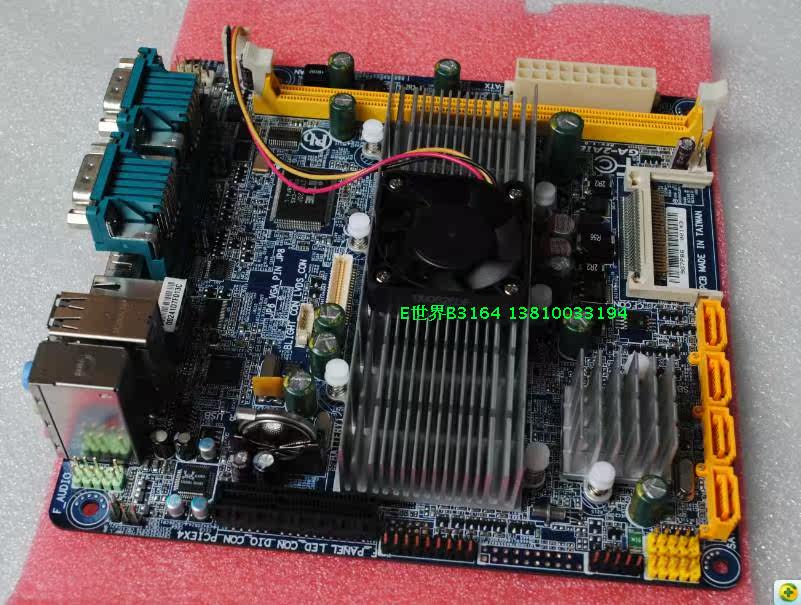

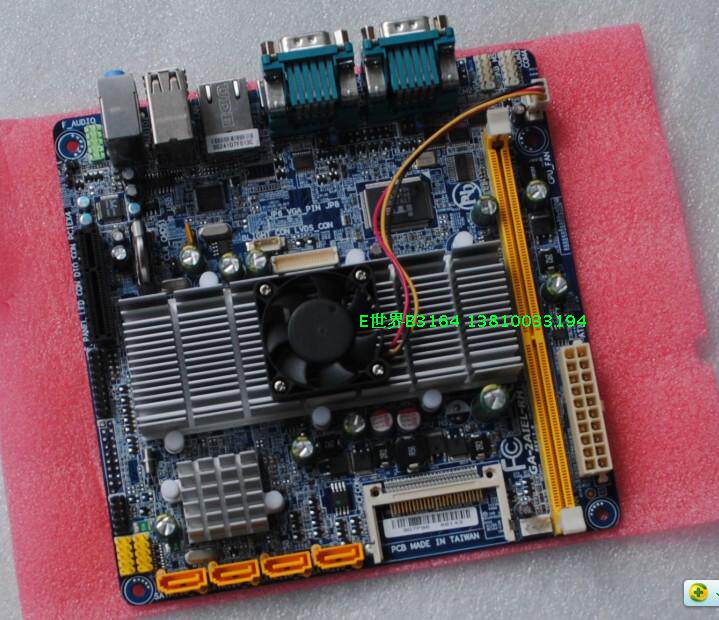

实物图如下：



















Board Size
  • Mini-ITX (17cm x 17cm)
Processor Supported
  • Onboard AMD Sempron 210U 1.5GHz processor
  • HyperTransport link up to 800MHz
Chipset Description
  • AMD M690E chipset with AMD SB600
Memory Type
  • 1 DDR2 DIMM socket
  • 667/ 800MHz up to 2GB
Integrated Network
  • 1 Gigabit LAN (Realtek RTL8111C)
Integrated Video Controller
  • ATI Radeon Xpress 1270 (AMD M690E)
Integrated Audio Controller
  • 7.1+2 channel HD audio (Realtek ALC889A)
Integrated SATA Controller
  • 4 ports SATA 3Gbps via AMD SB600
Expansion Slot
  • 1 PCI Express x1 (x4 mechanical)
  • 1 Compact Flash card slot support boot-up function
On Board Connectors
  • 2 COM
  • 1 LVDS (24bit)
  • 4 USB
Rear I/O Connectors
  • 3 Audio
  • 2 COM
  • 1 HDMI 1.3
  • 1 RJ45
  • 1 SPDIF out (Optical)
  • 4 USB
  • 1 VGA
Power
  • ATX power 24pin
Ordering Information
  • 9M2AIEL50R-00-10A


北京客户直接来店拿货，北京中关村E世界B3164   13810033194
