| Product SKUs |  | | CSE-826TQ-R800LPV | - SuperChassis 826TQ-R800LPV (Silver):
OEM only *
| | CSE-826TQ-R800LPB | - SuperChassis 826TQ-R800LPB (Black)
|

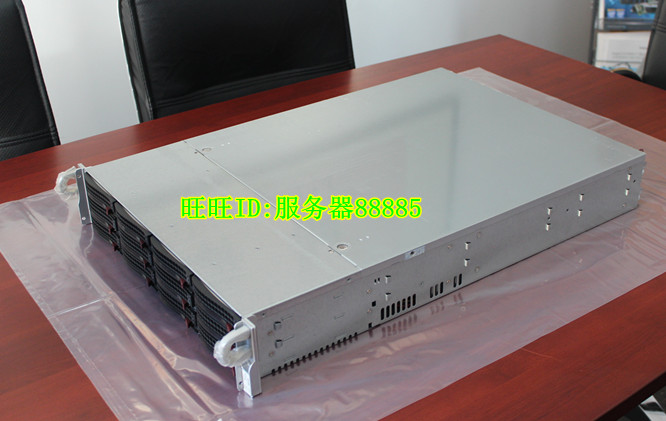

| | | Form Factor | | | 2U chassis support for max. motherboard size - 13" x 13.68" E-ATX |
| | | Processor Support | | | Supports dual, single Intel® / AMD processors |
| | | Dimensions | | | Width | 17.2" (437mm) | | Height | 3.5" (89mm) | | Depth | 25.5" (648mm) | | Gross Weight | 52 lbs (23.6kg) | | Packaging | - 26.7" (W) x 11.4" (H) x 34.5" (L)
| | Available Colors | Black, Silver (OEM) * |

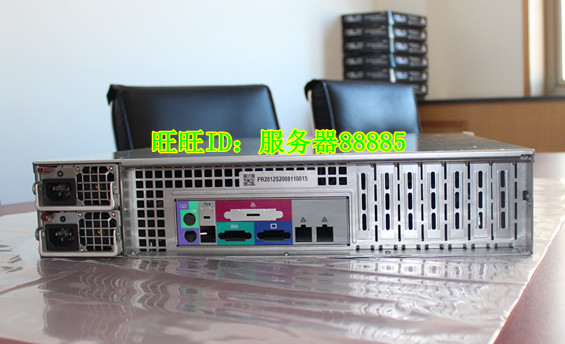

| | | Expansion Slots | | | • 7x low-profile full-length expansion slots |

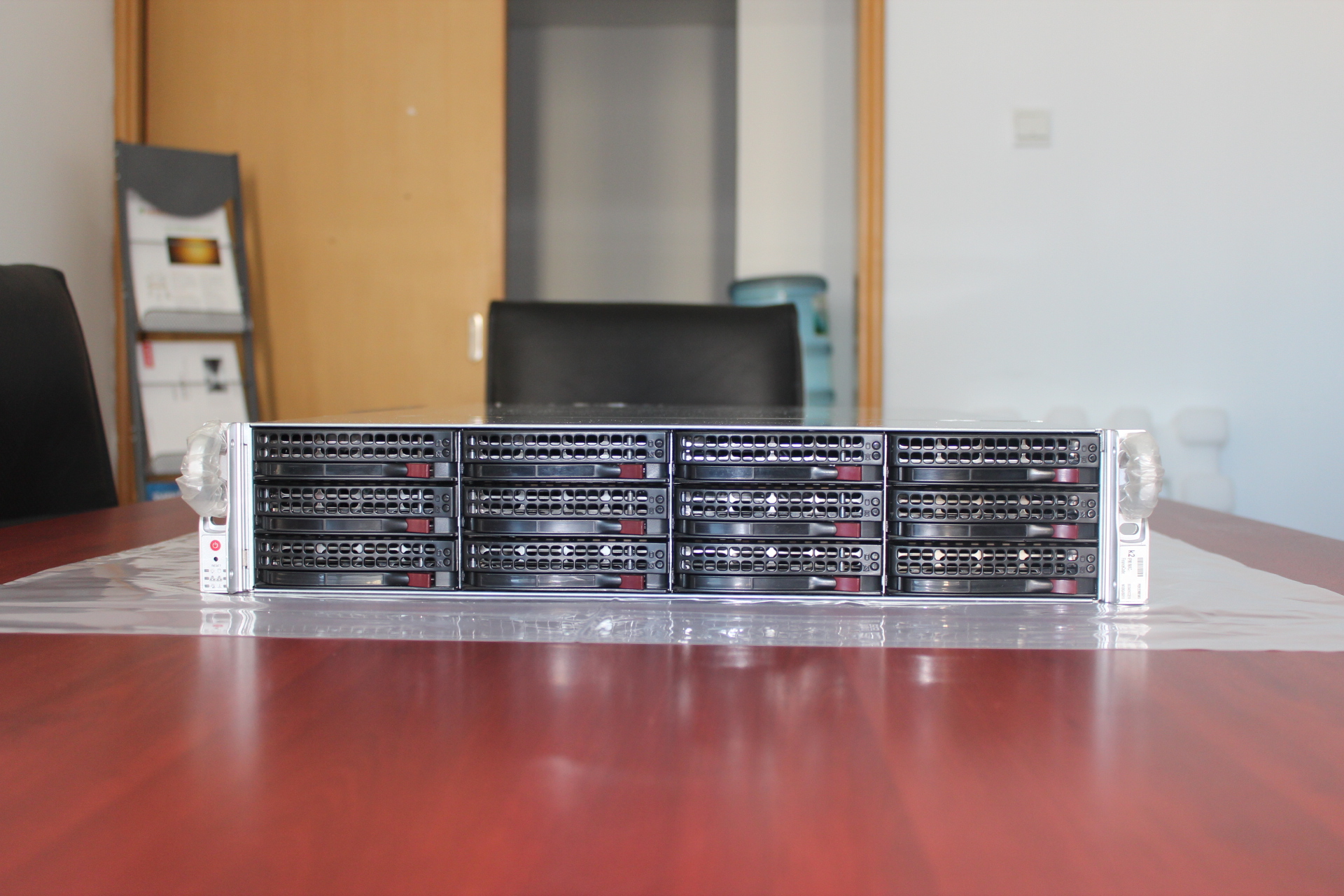

| | | Drive Bays | | | Hot-swap | 12 x 3.5" SAS / SATA Hot-swap drive trays
SAS or enterprise SATA HDD only recommended |
| | | Backplane | | 2U Direct Attached Backplane, features:
• 3Gb/6Gb support
• SES-2 Enclosure Management Support
• SAS/SATA support
• 12 SATA connectors |
| | | Front Panel | | | Buttons | • Power On/Off button
• System Reset button |

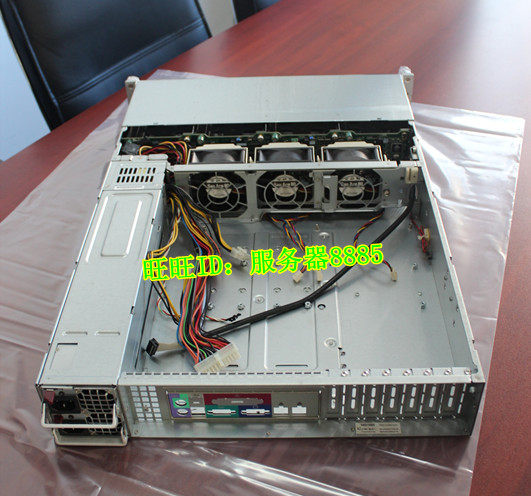

|  | | | System Cooling | | | Fans | 3x 80mm 6300 RPM fans |
| | | System Monitoring | | | Chassis intrusion switch |
| | | | Operating Environment (System) | | | Operating Temperature Range | | | Non-Operating Temperature Range | - -40°C - 70°C (-40°F - 158°F)
| | Operating Relative Humidity Range | - 8% - 90% (non-condensing)
| | Non-Operating Relative Humidity Range | - 5% - 95% (non-condensing)
|

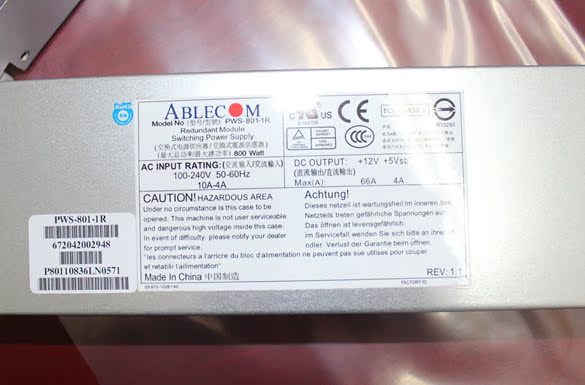

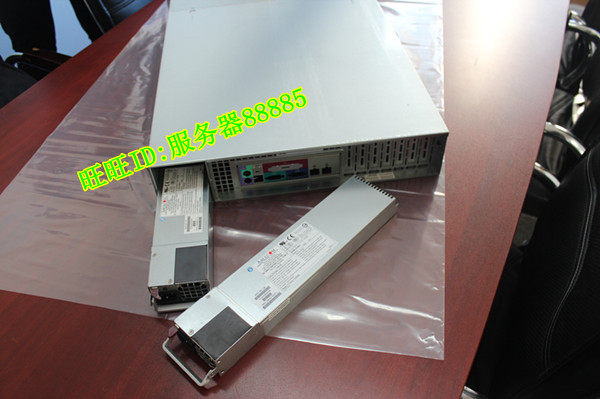

| | | Power Supply and Distributor | | | 800W (1 + 1) Redundant AC-DC high-efficiency power supply w/ PFC | | AC Voltage | - 100 - 240V, 50-60Hz, 10-4 Amp
| | +5V standby | | | +12V | | | +5V | | | +3.3V | | | -12V | |
| | | Regulatory (Power Supply) | | | Power Supply Safety / EMC | - USA - UL listed
- Canada - CUL listed
- Germany - TUV Certified
- EN 60950/IEC 60950-Compliant
- CB Report
- CCC Certification
|
|
