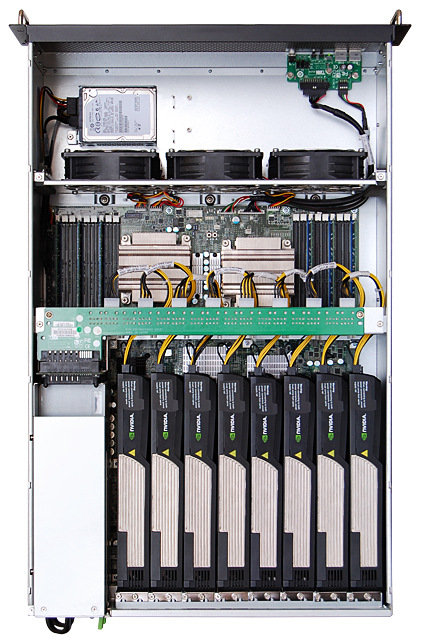

规格
支持XEON E5-2600、V2 LGA2011 双路
高度：4U 重量：35KG 体积770*438*177MM 1 HDD 2 lan 1 ipmi 1报警灯 2USB
电源：2+1
规格
支持XEON E5-2600、V2 LGA2011 双路
高度：4U 重量：35KG 体积770*438*177MM 1 HDD 2 lan 1 ipmi 1报警灯 2USB
电源：2+1
| Chipset | PCH | Intel C602 | |
| Switch IC | (4)PLX PEX8747 | ||
| Memory | Supported DIMM Qty | (12)+(12) DIMM slots | |
| DIMM Type / Speed | RDIMM ECC 1866/1600/1333/1066 / UDIMM/LRDIMM ECC 1866/1600/1333/1066 | ||
| Capacity | up to 192GB UDIMM / 384GB RDIMM / 768GB LRDIMM | ||
| Memory channel | 4 Channels per CPU | ||
| Memory voltage | 1.5V or 1.35V | ||
| Expansion Slots | PCI-E | (8) PCI-E Gen3 x16 slots / (2) PCI-E Gen3 x8 slots(one for mezzanine card) / (3) PCI-E Gen2 x1 slots | |
| PCI | (1) PCI 32-bit slot | ||
| Recommended TYAN Mezzanine Card | M7059F77-QDR-2, Dual QSFP IB mezzanine card (40Gb/s) / M7059F77-FDR-2, Dual QSFP IB mezzanine card (56Gb/s) | ||
| LAN | Port Q'ty | (2) GbE ports (1 port shared with IPMI) | |
| Controller | Intel I350-BT2 | ||
| Storage | SATA | Connector | (2) Mini-SAS (8-ports) + (2) SATA (totally support 10 ports) |
| Controller | Intel C602 | ||
| Speed | (2) 6.0 Gb/s, (8) 3.0 Gb/s | ||
| RAID | RAID 0/1/10/5 (Intel RST) | ||
| Graphic | Connector type | D-Sub 15-pin | |
| Chipset | Aspeed AST2300 | ||
| I/O Ports | USB | (2) ports (via a dongle cable) | |
| VGA | (1) D-Sub 15-pin port (via a dongle cable) | ||
| RJ-45 | (2) ports (1 port shared with IPMI) | ||
| System Monitoring | Chipset | Aspeed AST2300 | |
| Voltage | Monitors voltage for CPU, memory, chipset & power supply | ||
| Temperature | Monitors temperature for CPU & memory | ||
| LED | Fan fail LED indicator / Over temperature warning indicator / Fan & PSU fail LED indicator | ||
| Others | Watchdog timer support | ||
